Product Description:

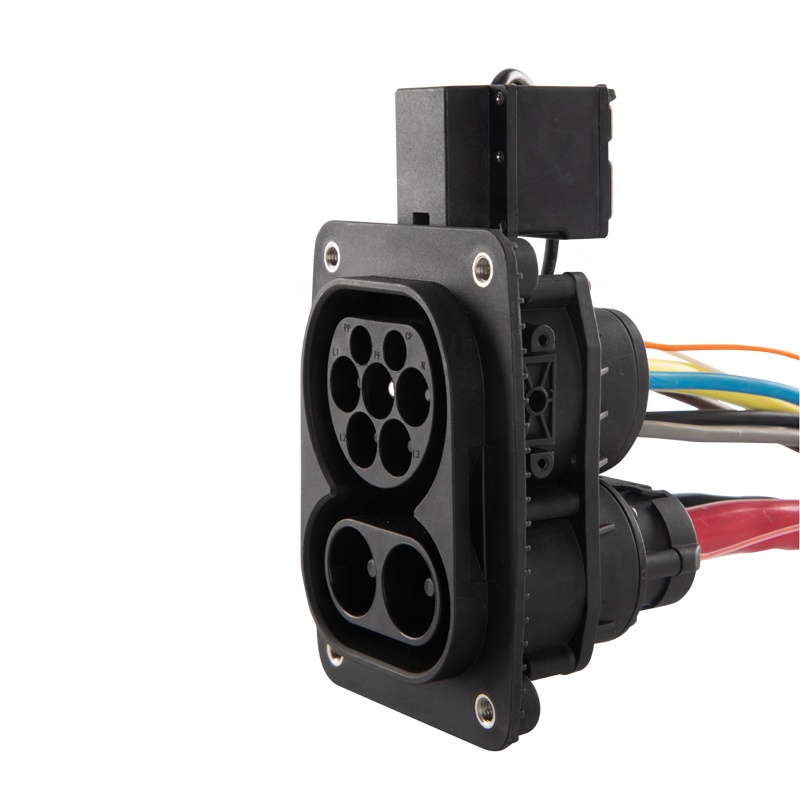

The Combo CCS2 charging connectors are available in 60A to 200A. It’s combined alternating current (AC) Type 2 charging and direct current (DC) CCS fast charge in one inlet. It is used at vehicle side.
Combined Charging System (CCS) is based on open and universal standards for electric vehicles. The CCS combines single-phase with rapid three-phase charging using alternating current at a maximum of 43 kilowatts (kW), as well as direct-current charging at a maximum of 200 kW and the future perspective of up to 350 kW – all in a single system. As a result, it provides a solution to all necessary charging requirements.
Product Specification:
| Rated current | 60A,80A,125A,200A |
| Operating voltage | 1000V DC |
| Insulation resisitance | >2000MΩ(DC1000V) |
| Therminal temperature rise | <50K |
| Withstand voltage | 3200V |
| Vibration resistance | Meet JDQ53.36.1.1-53.36.1.2 requirements |
| Contact impedance | 0.5mΩ Max |
| Mechanical life | no-load plug in/pull out >10000 times |
| Insertion and Extration Force | 45N |
| Contact Pin | Copper alloy, silver or nickel plating |
| Sealing gasket | rubber or silicon rubber |
| Operating temperature | -30°C~+50°C |
FAQ:
Q1. What about the lead time?
A: 10-15 days for mass production.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.
Q3. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
