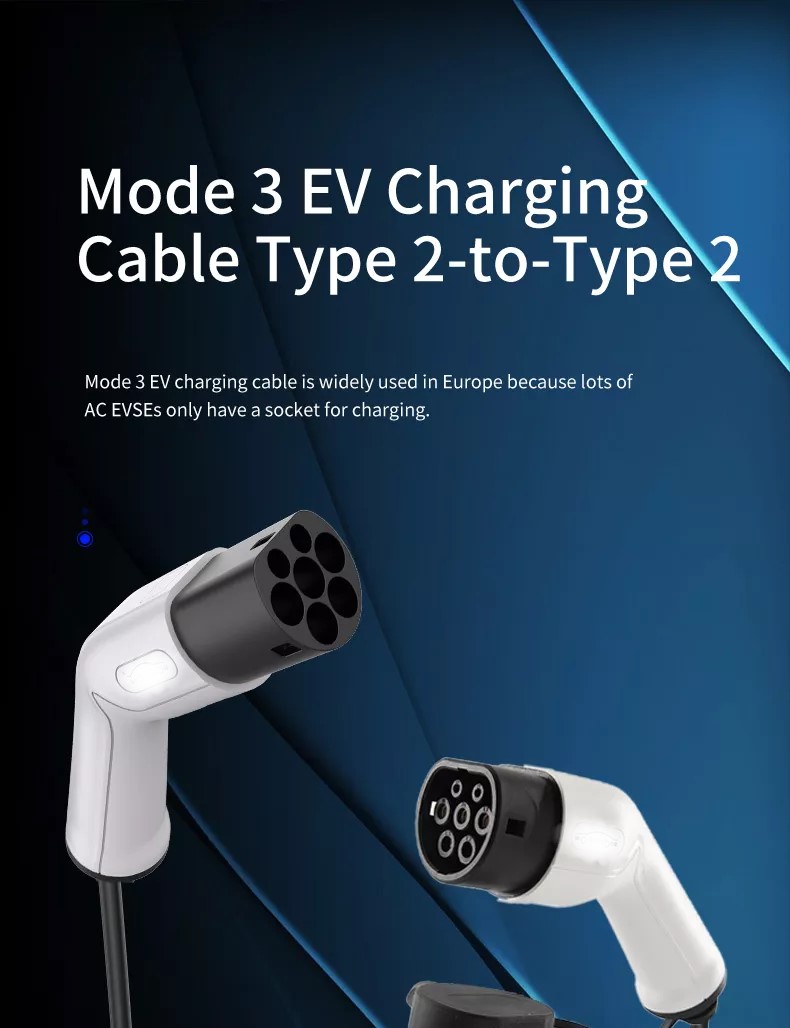

Mode 3 Charging Connectors Type 2 Female To Male Multi Color EV Charging Cable
Product Description:
a: Mode 3 Charging Connectors Type 2 Female To Male Multi Color EV Charging Cable for connecting your hybrid vehicle or electric car, motorcycle or van to a charging station or to a charging station installed at home or in the office.
b: Our 3-phase charging cables are compatible with Mode 3 charging stations, ie if your hybrid or electric vehicle does not support 3-phase charging, the cable will still charge up to the maximum charging capacity of your vehicle. This cable can charge up to 11kW.
Product Specification:
| Vehicle connector type | Type2 to Type2 connector - IEC 62196-2 to 62196-2 |
| Available lengths | 3M, 5M, 8M, 10M, 15M |
| Cable Material | TPU |
| Plug Color | White / Black |
| IP class | IP55 |
| Rated current | 16A - up to 11kW / 400V, Three-phase |
| Operating voltage | 400v |
| operating temperatur | -30 ℃ to 50 ℃ |
| Grounding | Isolated ground |
| Mating cycles | 10,000 |
| Cable thickness | 5*2.5mm² + 2*0.5mm² |
| Certification | TUV, CE |
FAQ:
Q1. What about the lead time?
A: 10-15 days for mass production.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive. Airline and sea shipping also optional.
Q3. Can I have a sample order for EV charging cables?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
|
|

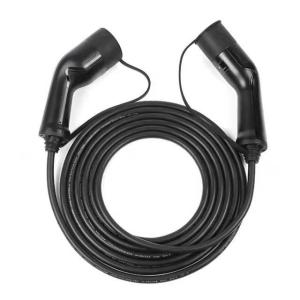

Mode 3 Charging Connectors Type 2 Female To Male Multi Color EV Charging Cable Images
|
